Z482-E3B

Z482-E3B

GENERAL SPECIFICATION
Engine model Z482-E3B
Emission regulation EPA/CARB Tier 4 level
Type Vertical, water cooled 4-cycle diesel engine
Cylinders 2
Bore and stroke mm (in) 67.0 x 68.0 (2.64 x 2.68)
Displacement L (cu.in) 0.479 (29.23)
Aspiration Naturally aspirated
Aftertreatment -

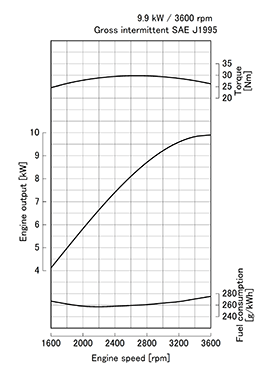

Rated output / speed*1 kW (HP) / rpm 9.9 (13.3) / 3600
Maximum torque / speed*1 Nm (lb-ft) / rpm 29.7 (21.9) / 2600
Combustion system Indirect injection
Fuel system In-line pump

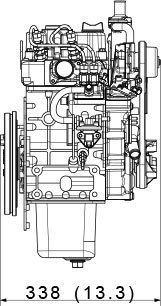

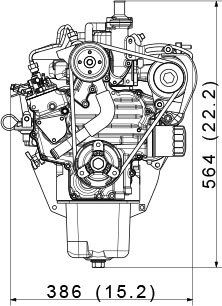

Length x Width x Height*2
(without aftertreatment unit) mm (in) 338 x 386 x 564 (13.3 x 15.2 x 22.2)
Length x Width x Height*3
(with aftertreatment unit) mm (in) -
Dry weight kg (lb) 53 (117)
Specifications are subject to change without notice. Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

FEATURES & BENEFITS

Emissions
The Kubota Super Mini Series features compact multi-cylinder
liquid cooled industrial diesel engines which comply with EPA /
CARB Tier 4 emissions level.
Durable Power
The Kubota Super Mini Series has been chosen as a power
source for a variety of applications. The Z482 engine offers a
seamless transition from EPA Tier 2 to EPA Tier 4 by maintaining
the same level of performance and physical characteristics.
Clean and Quiet Power
Kubota’s original E-TVCS (Three Vortex Combustion System) has
been further improved for cleaner emissions. The piston recess
has been optimized to achieve lower particulate matter (PM)
levels at an extremely small size. The half-float valve cover and
MoS2-coated pistons reduce noise levels and decrease vibrations
transmitted from the valve area.
