D1305-E4B

D1305-E4B

GENERAL SPECIFICATION

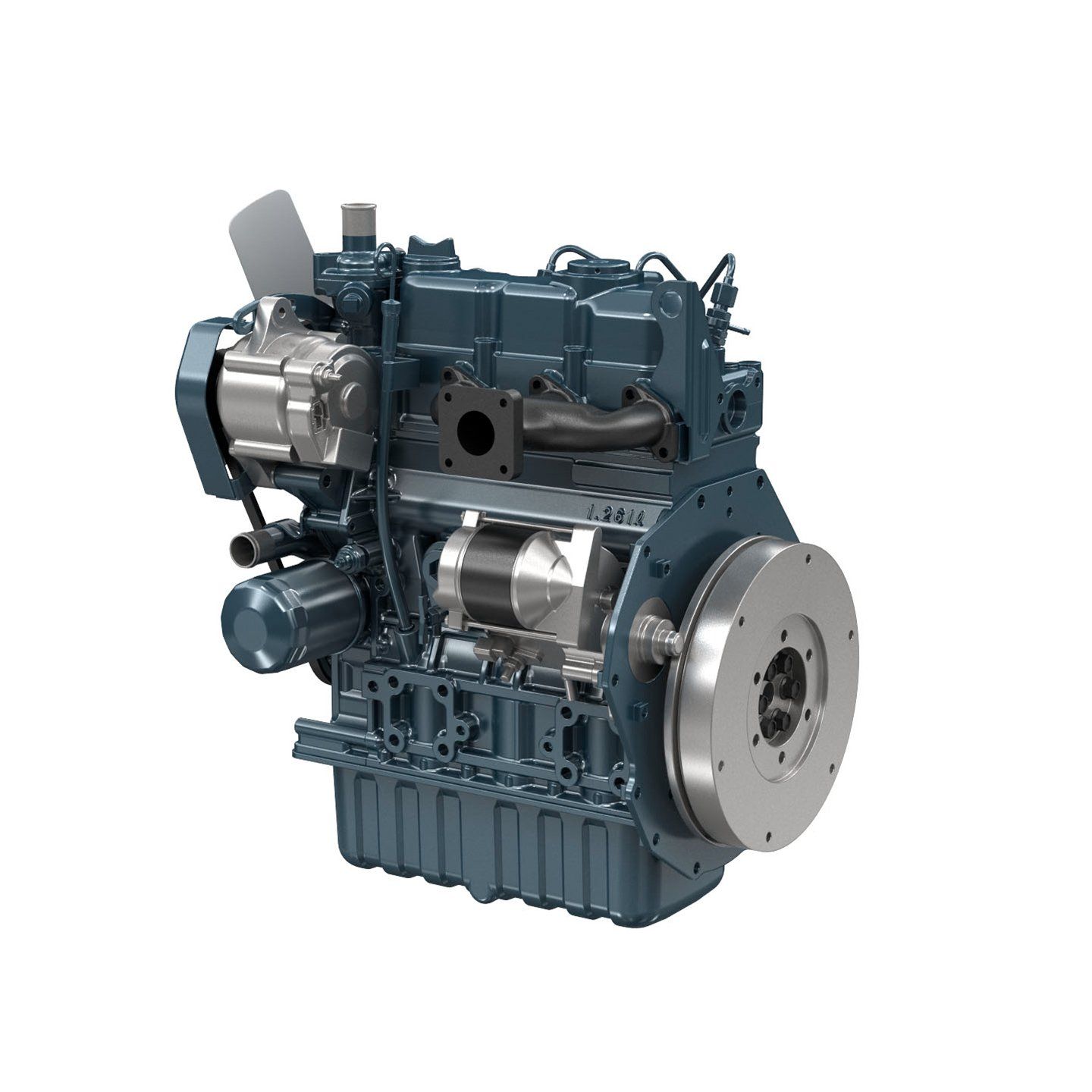

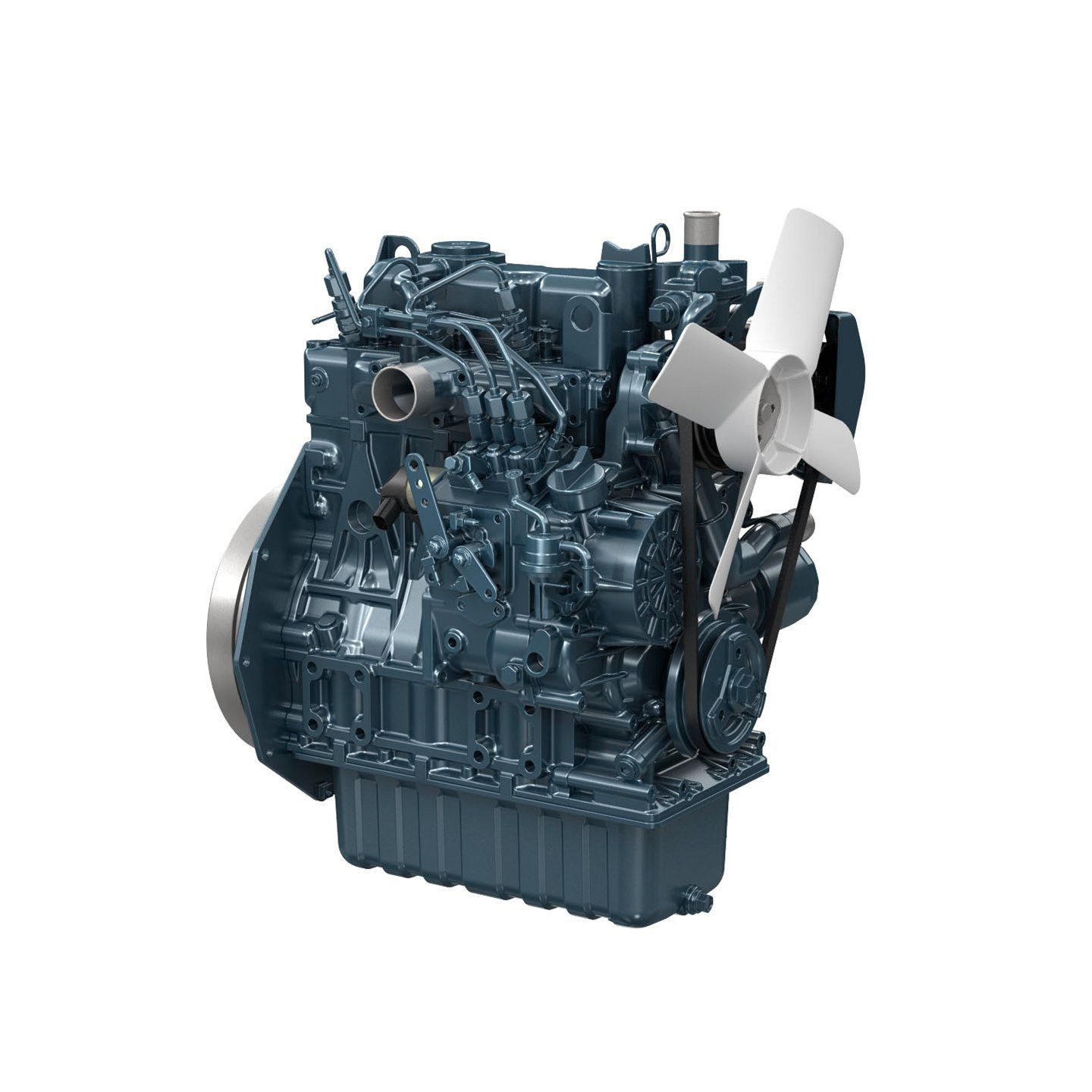

Engine model D1305-E4B
Emission regulation EPA/CARB Tier 4 (NRTC/NTE test mode) + EU Stage V
Type Vertical, water cooled 4-cycle diesel engine
Cylinders 3
Bore and stroke mm (in) 78.0 x 88.0 (3.07 x 3.46)
Displacement L (cu.in) 1.261 (76.95)
Aspiration Naturally aspirated
Aftertreatment -

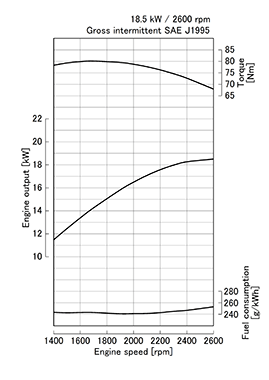

Rated output / speed*1 kW (HP) / rpm 18.5 (24.8) / 2600
Maximum torque / speed*1 Nm (lb-ft) / rpm 80.1 (59.1) / 1700
Combustion system Indirect injection
Fuel system In-line pump
Length x Width x Height*2
(without aftertreatment unit) mm (in) 480 x 396 x 590 (18.9 x 15.6 x 23.2)
Length x Width x Height*3
(with aftertreatment unit) mm (in) -
Dry weight kg (lb) 95 (209)
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

FEATURES & BENEFITS

Emissions
The D1305 engine complies with EPA Tier 4 emissions regulations.
Durable Power
The Kubota 05 Series is an established leader, selected as the power
source of choice by various industrial equipment manufacturers. The
D1305 engine is a high power density engine that delivers the
highest output within the Kubota 05 Series with a naturally aspirated
3-cylinder configuration. D1305 delivers a smooth transition from
E3 to E4.
Clean and Quiet Power
Kubota’s original E-TVCS (Three Vortex Combustion System) has
been improved. The airflow, combustion chamber, and piston recess
have been optimized to provide low particulate matter (PM) levels,
matching the stringent level of the 37 kW class and higher (EPA
Interim Tier 4 Option 1). The half-float valve cover and MoS2-coated
pistons reduce noise levels and decrease vibrations transmitted from
the valve area.
