Z482-E2B
Z482-E2B
| GENERAL SPECIFICATION | |
|---|---|
| Engine model | Z482-E2B |
| Emission regulation | EPA/CARB Tier 2 level |
| Type | Vertical, water cooled 4-cycle diesel engine |
| Cylinders | 2 |
| Bore and stroke | mm (in) | 67.0 x 68.0 (2.64 x 2.68) |
| Displacement | L (cu.in) | 0.479 (29.23) |
| Aspiration | Naturally aspirated |
| Aftertreatment | - |

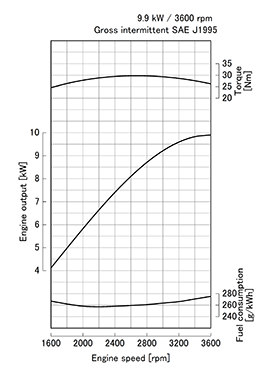

| Rated output / speed*1 | kW (HP) / rpm | 9.9 (13.3) / 3600 |
| Maximum torque / speed*1 | Nm (lb-ft) / rpm | 29.7 (21.9) / 2600 |
| Combustion system | Indirect injection |
| Fuel system | In-line pump |

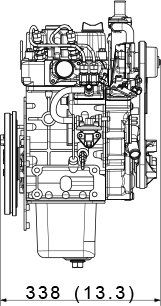

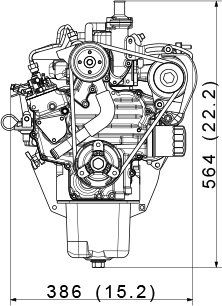

| Length x Width x Height*2 (without aftertreatment unit) | mm (in) | 338 x 386 x 564 (13.3 x 15.2 x 22.2) |
| Length x Width x Height*3 (with aftertreatment unit) | mm (in) | - |
| Dry weight | kg (lb) | 53 (117) |
Specifications are subject to change without notice. Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine
