D1005-E4B(3200rpm)

D1005-E4B(3200rpm)

GENERAL SPECIFICATION
Engine model D1005-E4B(3200rpm)
Emission regulation EPA/CARB Tier 4 (NRTC/NTE test mode) + EU Stage V
Type Vertical, water cooled 4-cycle diesel engine
Cylinders 3
Bore and stroke mm (in) 76.0 x 73.6 (2.99 x 2.90)
Displacement L (cu.in) 1.001 (61.08)
Aspiration Naturally aspirated
Aftertreatment -

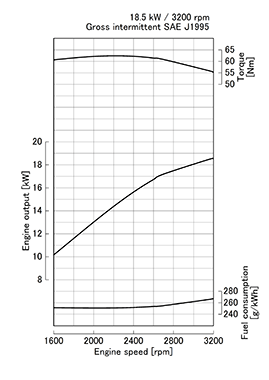

Rated output / speed*1 kW (HP) / rpm 18.5 (24.8) / 3200
Maximum torque / speed*1 Nm (lb-ft) / rpm 62.2 (45.9) / 2400
Combustion system Indirect injection
Fuel system In-line pump

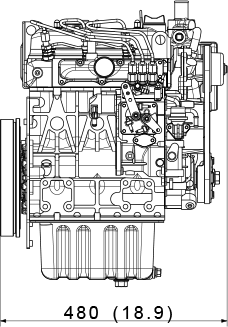

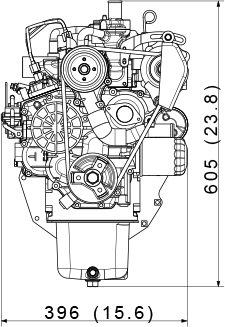

Length x Width x Height*2
(without aftertreatment unit) mm (in) 480 x 396 x 605 (18.9 x 15.6 x 23.8)
Length x Width x Height*3
(with aftertreatment unit) mm (in) -
Dry weight kg (lb) 93 (205)
Specifications are subject to change without notice. Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

FEATURES & BENEFITS

Emissions
The D1005 engine complies with EPA / CARB Tier 4 emissions
regulations.
Durable Power
The Kubota 05 Series is an established leader in its horsepower
range, selected as the power source of choice by various industrial
equipment manufacturers. The D1005 offers a seamless transition
from E3 to E4 by maintaining the same footprint and hardware
mounting points.
Clean and Quiet Power
Kubota’s original E-TVCS (Three Vortex Combustion System) has
been improved. The airflow, combustion chamber, and piston recess
have been optimized to provide low particulate matter (PM) levels,
matching the stringent level of emission regulation.

Options
A variety of engine accessory options are also available.
