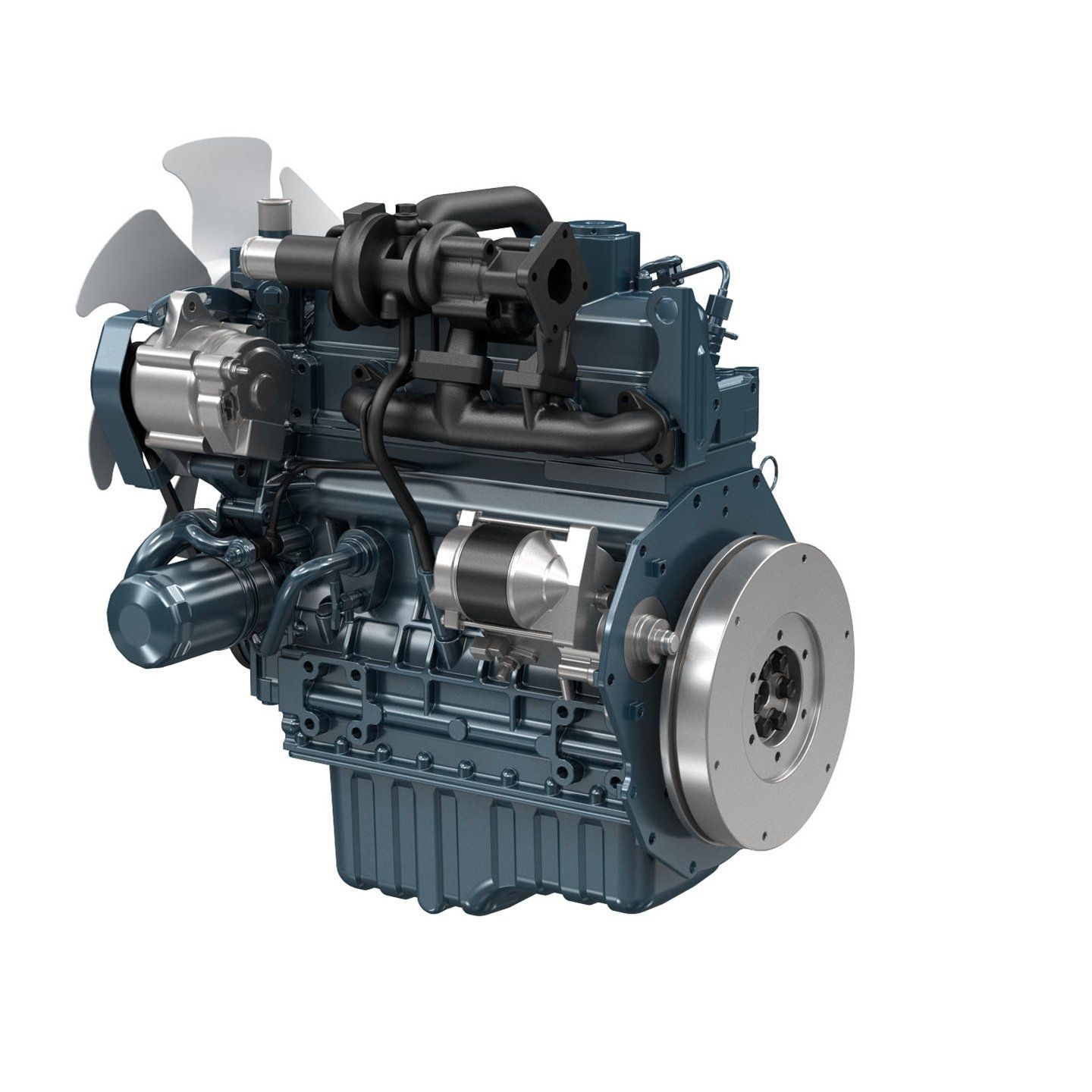

V1505-T-E3B

V1505-T-E3B

GENERAL SPECIFICATION
Engine model V1505-T-E3B
Emission regulation EPA/CARB interim Tier 4 level + EU Stage IIIA
Type Vertical, water cooled 4-cycle diesel engine
Cylinders 4
Bore and stroke mm (in) 78.0 x 78.4 (3.07 x 3.09)
Displacement L (cu.in) 1.498 (91.41)
Aspiration Turbocharged
Aftertreatment -

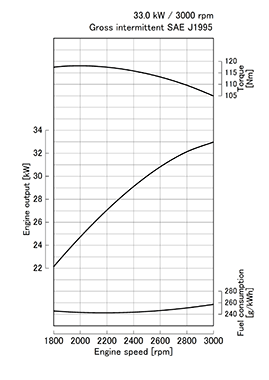

Rated output / speed*1 kW (HP) / rpm 33.0 (44.3) / 3000
Maximum torque / speed*1 Nm (lb-ft) / rpm 118.6 (87.5) / 2000
Combustion system Indirect injection
Fuel system In-line pump
Length x Width x Height*2
(without aftertreatment unit) mm (in) 565 x 433 x 621 (22.2 x 17.0 x 24.4)
Length x Width x Height*3
(with aftertreatment unit) mm (in) -
Dry weight kg (lb) 114 (251)
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

FEATURES & BENEFITS

Emissions
The V1505 Turbocharged engine complies with EPA / CARB interim
Tier 4 + EU Stage IIIA emissions regulations.
Durable Power
The Kubota 05 Series is an established leader in its horsepower
range, selected as the power source of choice by various industrial
equipment manufacturers.
The V1505-T engine offers a seamless transition from EPA Tier
2 to EPA interim Tier 4 by maintaining the same footprint and
hardware mounting points, with no performance changes from
Tier 2 engines.
Clean and Quiet Power
The addition of a closed breather system meets EPA interim Tier
4 requirements.
Kubota’s original E-TVCS (Three Vortex Combustion System)
has been improved. The airflow, combustion chamber, and
piston recess have been optimized to provide low particulate
matter (PM) levels, matching the stringent level of the 37 kW
class and higher (EPA Interim Tier 4 Option 1).
