V1505-E4B

V1505-E4B

GENERAL SPECIFICATION

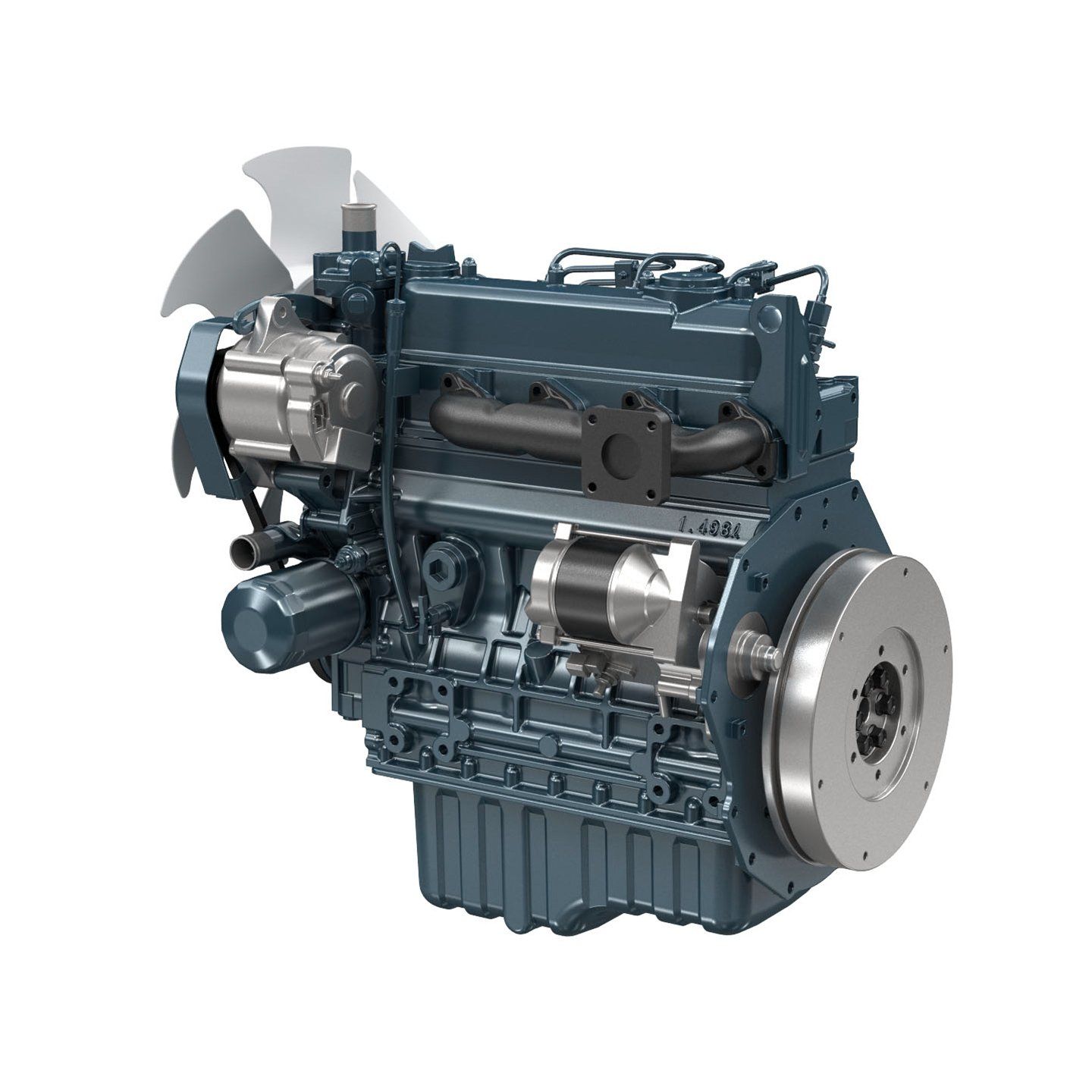

Engine model V1505-E4B
Emission regulation EPA/CARB Tier 4 (NRTC/NTE test mode) + EU Stage V
Type Vertical, water cooled 4-cycle diesel engine
Cylinders 4
Bore and stroke mm (in) 78.0 x 78.4 (3.07 x 3.09)
Displacement L (cu.in) 1.498 (91.41)
Aspiration Naturally aspirated
Aftertreatment -

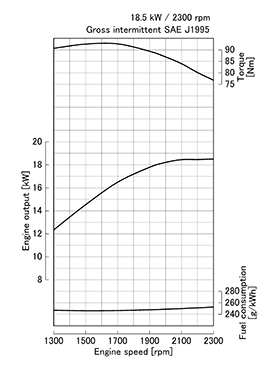

Rated output / speed*1 kW (HP) / rpm 18.5 (24.8) / 2300
Maximum torque / speed*1 Nm (lb-ft) / rpm 92.6 (68.3) / 1700
Combustion system Indirect injection
Fuel system In-line pump
Length x Width x Height*2
(without aftertreatment unit) mm (in) 565 x 396 x 607 (22.2 x 15.6 x 23.9)
Length x Width x Height*3
(with aftertreatment unit) mm (in) -
Dry weight kg (lb) 110 (243)
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

FEATURES & BENEFITS

Emissions
The V1505 engine complies with EPA / CARB Tier 4 emissions
Durable Power
The Kubota 05 Series is an established leader, selected as the power
source of choice by various industrial equipment manufacturers.
By reducing output, the V1505 engine realizes a smooth transition
from E3 to E4.
Clean and Quiet Power
Kubota’s original E-TVCS (Three Vortex Combustion System) has
been improved. The airflow, combustion chamber, and piston recess
have been optimized to provide low particulate matter (PM) levels,
matching the stringent level of the emission regulation below 37 kW
The half-float valve cover and MoS2-coated pistons reduce noise
levels and decrease vibrations transmitted from the valve area.
