V2003-M-E3B

V2003-M-E3B

GENERAL SPECIFICATION

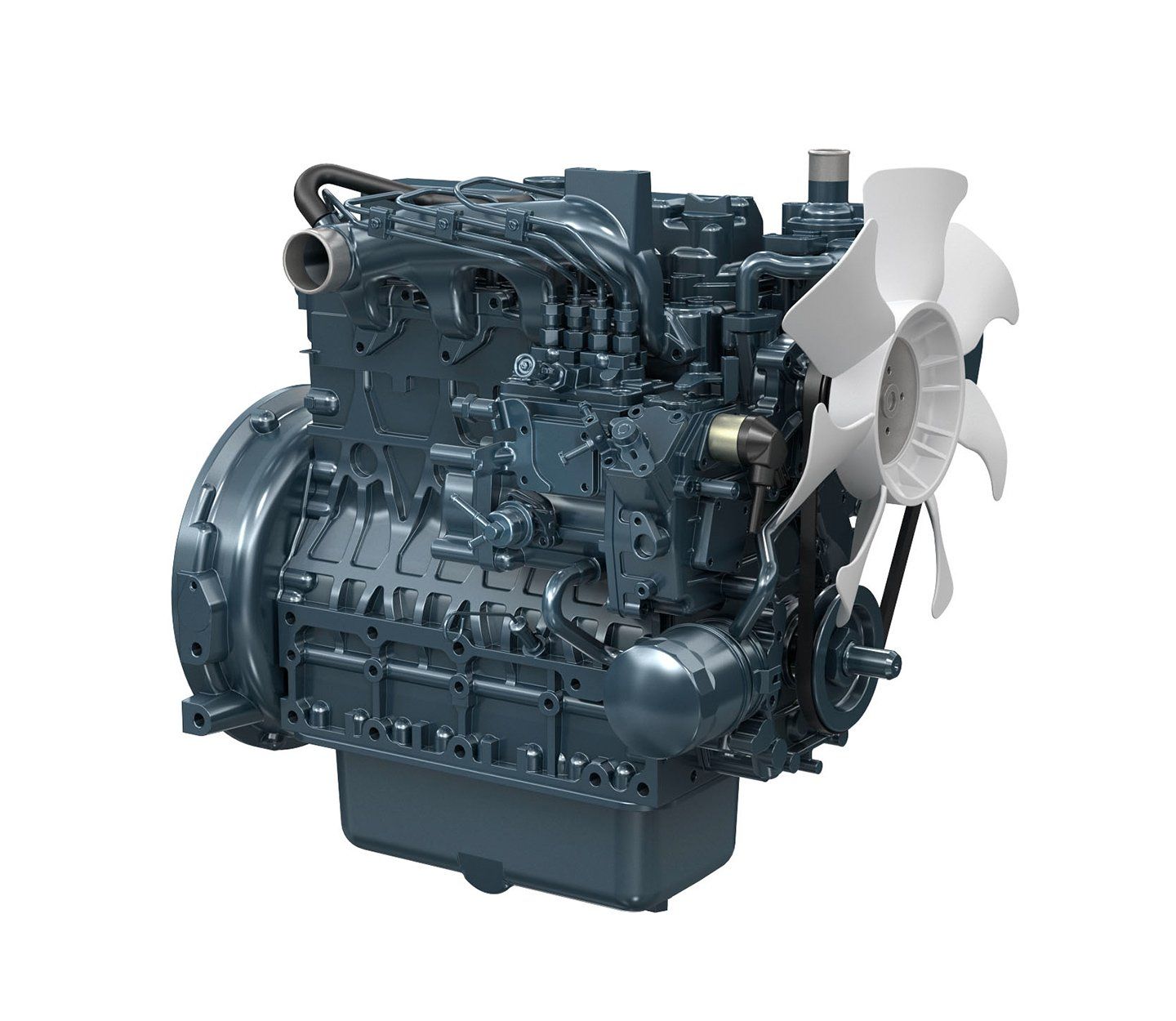

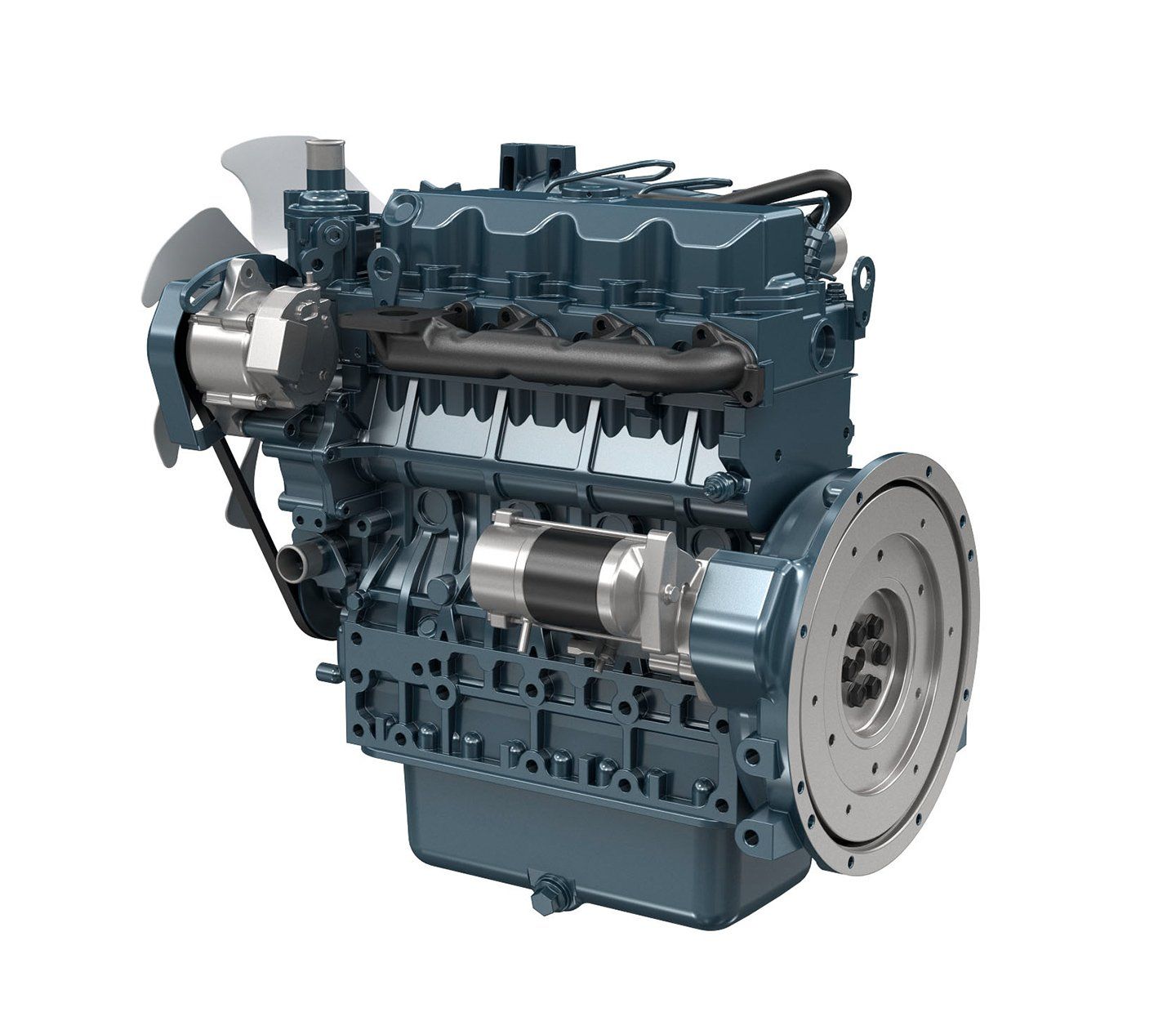

Engine model V2003-M-E3B
Emission regulation EPA/CARB interim Tier 4 level + EU Stage IIIA
Type Vertical, water cooled 4-cycle diesel engine
Cylinders 4
Bore and stroke mm (in) 83.0 x 92.4 (3.27 x 3.64)
Displacement L (cu.in) 1.999 (122.0)
Aspiration Naturally aspirated
Aftertreatment -

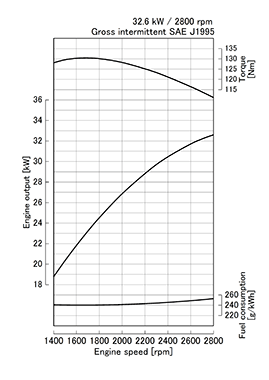

Rated output / speed*1 kW (HP) / rpm 32.6 (43.7) / 2800
Maximum torque / speed*1 Nm (lb-ft) / rpm 130.3 (96.10) / 1600
Combustion system Indirect injection
Fuel system In-line pump
Length x Width x Height*2
(without aftertreatment unit) mm (in) 642 x 495 x 679 (25.3 x 19.5 x 24.9)
Length x Width x Height*3
(with aftertreatment unit) mm (in) -
Dry weight kg (lb) 180 (397)
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

FEATURES & BENEFITS

Emissions
The V2003-M engine complies with the EPA / CARB interim Tier
4 + EU Stage IIIA emissions regulations.
Durable Power
The Kubota 03-M Series is well known for its industrial applications.
With numerous features such as a built-in solenoid, low fan position,
and single-side serviceability, this engine provides excellent
performance and flexibility.
The cooling water passages between the cylinder bores features
Kubota’s original casting technology as a countermeasure against
the heat load caused by high power density, providing both superior
endurance and reliable engine performance.
The V2003-M engine offers a seamless transition from EPA Tier 2
to interim Tier 4 by maintaining the same footprint and hardware
mounting points with minimal performance changes from EPA
Tier 2 engines.
Clean and Quiet Power
Kubota’s original E-TVCS (Three Vortex Combustion System) has
been improved. The airflow, combustion chamber, and piston
recess have been optimized to provide lower particulate matter
(PM) levels.
The half-float valve cover and MoS2-coated pistons reduce noise
levels by 1.0-2.0 dBA compared to conventional diesel engines
and decrease vibrations transmitted from the valve area.

Options
Kubota 03-M Series engines offer side power take-off (PTO) in
response to the trend of the use of hydraulic control devices in
industrial machines. A hydraulic pump can be installed at the two
side PTO locations.
