D1105-T-E3B

D1105-T-E3B

GENERAL SPECIFICATION
Engine model D1105-T-E3B
Emission regulation EPA/CARB interim Tier 4 level + EU Stage IIIA
Type Vertical, water cooled 4-cycle diesel engine
Cylinders 3
Bore and stroke mm (in) 78.0 x 78.4 (3.07 x 3.09)
Displacement L (cu.in) 1.123 (68.53)
Aspiration Turbocharged
Aftertreatment -

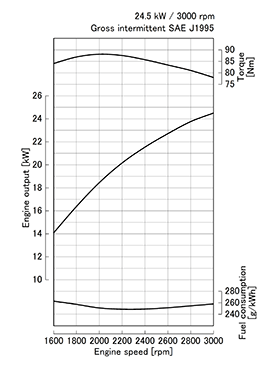

Rated output / speed*1 kW (HP) / rpm 24.5 (32.9) / 3000
Maximum torque / speed*1 Nm (lb-ft) / rpm 88.1 (65.0) / 2000
Combustion system Indirect injection
Fuel system In-line pump
Length x Width x Height*2
(without aftertreatment unit) mm (in) 480 x 433 x 629 (18.9 x 17.0 x 24.8)
Length x Width x Height*3
(with aftertreatment unit) mm (in) -
Dry weight kg (lb) 97 (214)
Specifications are subject to change without notice. Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

FEATURES & BENEFITS

Emissions
The D1105 Turbocharged engine complies with the EPA / CARB
interim Tier 4 + EU Stage IIIA emissions regulations.
Durable Power
The Kubota 05 Series is an established leader in its horsepower
range, selected as the power source of choice by various industrial
equipment manufacturers.
The D1105 Turbocharged engine offers a seamless transition from
EPA Tier 2 to EPA interim Tier 4 by maintaining the same footprint
and hardware mounting points, with no performance changes from
EPA Tier 2 engines.
Clean and Quiet Power
Kubota’s original E-TVCS (Three Vortex Combustion System) has
been improved. The airflow, combustion chamber, and piston recess
have been optimized to provide low particulate matter (PM) levels,
matching the stringent level of the below 37 kW class.
