ADAPTOR Engine – Sterndrive
| Technical specifications | |
|---|---|
| Generating set type | |
| Type of product | ADAPTOR Engine – Sterndrive |

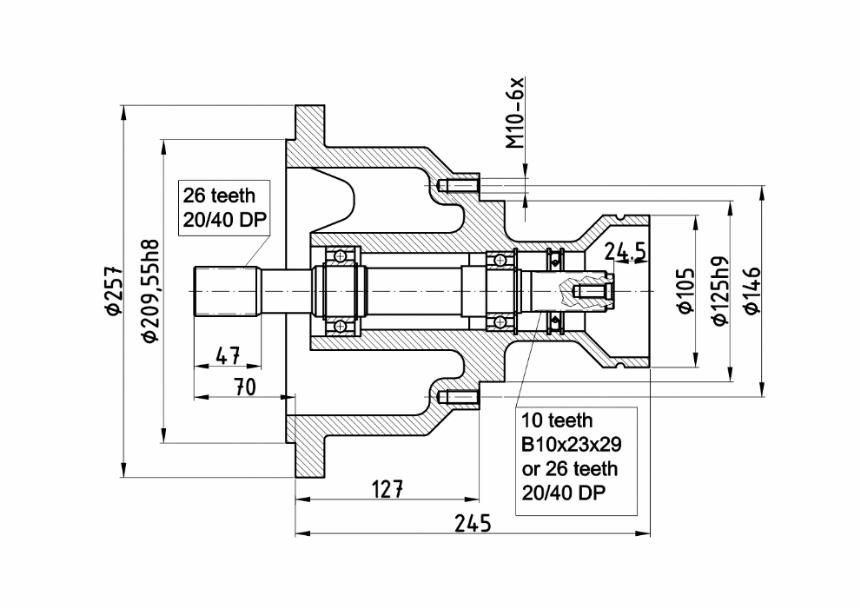

Blueprints and diagrams
Description

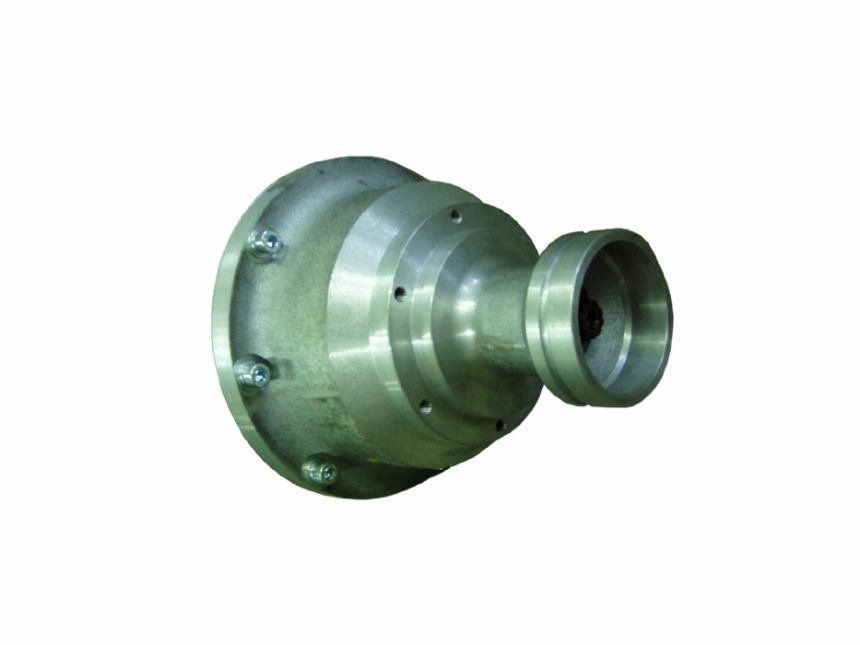

This adaptor is designed to couple Volvo and Mercruiser sterndrives to any engine model or brand available in the market, and consists of an aluminium housing, a splined shaft supported by two bearings and a gasket.
On the engine side the adaptor has a standard BW / SAE 7 fit with BW 26 teeth on the input shaft. At the rear the housing connection is standard for the rubber bellow of Volvo and Mercruiser sterndrives and the shaft has at choice a 10 or 26 teeth spline for the cardan shaft of the sterndrive.
Info
SCAM marine gives a 24 month warranty starting on the date of delivery.
