HC 850
General Marine Parts
HC 850
| Technical specifications | |
|---|---|
| Type of product | Hydraulic cylinder |
| Nominal maximum pressure | 65 bar/6374 kPa |
| Promjer cilindra | 40 mm |
| Hod cilindra | 195 mm |
| Dužina ruda | 170 mm for rudder angle 2x35° |
| Promjer klipne motke | 18 mm |
| Radni volumen cilindra | 195,42 cm3 |
| Max. sila | 5509 N |
| Br. okr. kola za puni otklon | 5,31 |

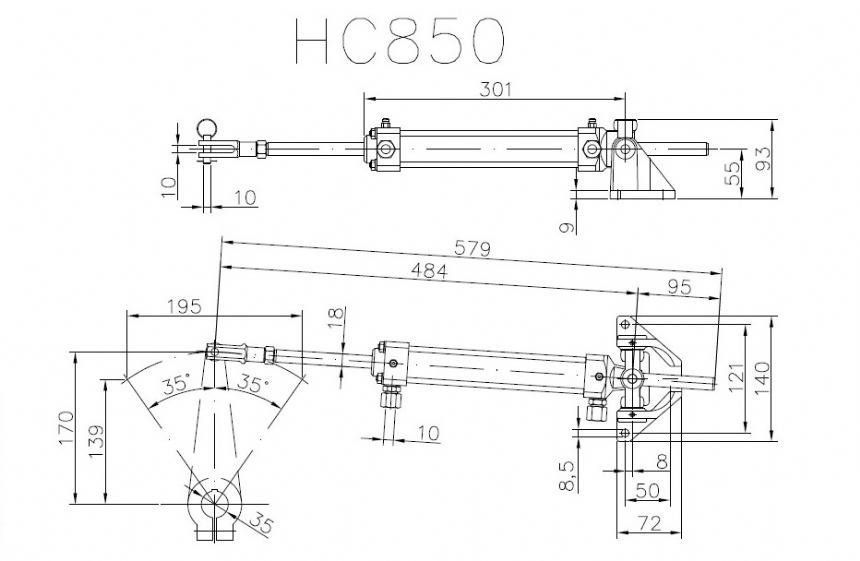

Blueprints and diagrams HC 850
Standard equipment
Operation manual, clevis to connect the cylinder to the tiller.
Description

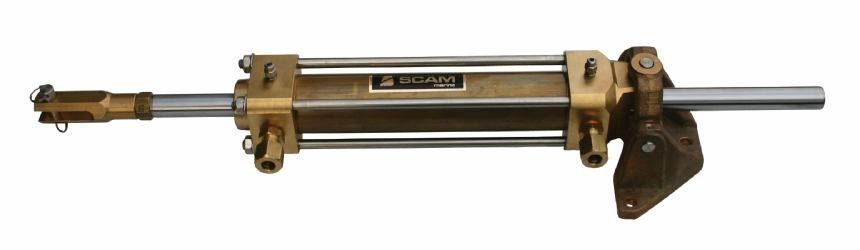

SCAM hydraulic cylinder HC 850 is usually installed in combination with the hydraulic pump HP 05 OB. Thanks to the cardan and ball joint on the cylinder rod, SCAM hydraulic cylinders are easily installed. Due to the careful choice of material (inox - bronze) they don’t require any special maintenance.
We recommend SCAM HIDRAULIC FLUID or the following hydraulic oils:
- - INA Hidraol 15
- - Castrol HYSPIN AWH-15
- - Shell Tellus T 15
- - Mobil HSC 522
- - BP Bartan HV 15
- - Valvoline Ultramax HD15
and other hydraulic oils with same specifications.
Info
SCAM marine gives a 24 month warranty on steering gears starting with delivery date. SCAM marine hydraulic cylinders have type approval certificate of the Croatian Register of Shipping and CE mark.
