HC 1600

HC 1600

Technical specifications
Type of product Hydraulic cylinder
Nominal maximum pressure 60 bar/5884 kPa
Promjer cilindra 50 mm
Hod cilindra 195 mm
Dužina ruda 170 mm for rudder angle 2x35°
Promjer klipne motke 22 mm
Radni volumen cilindra 308,75 cm3
Max. sila 9495 N
Br. okr. kola za puni otklon 5,16

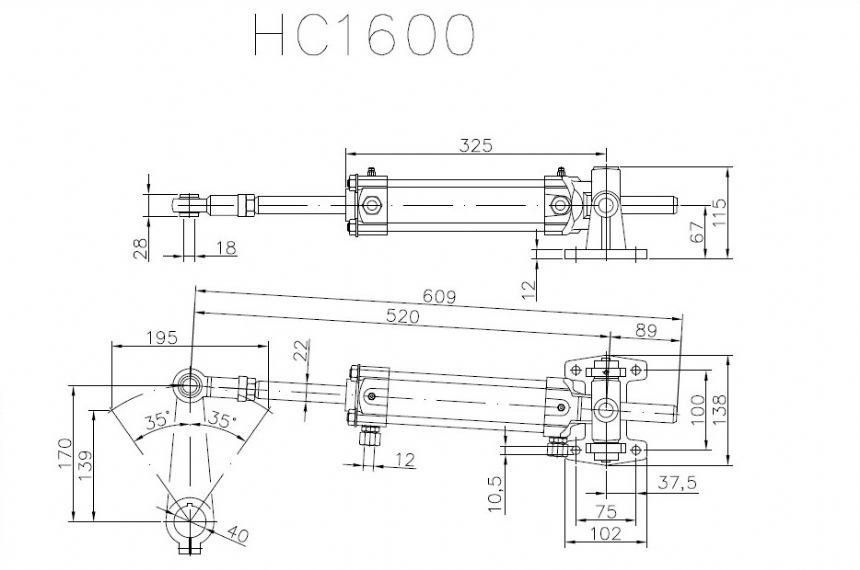

Blueprints and diagrams
HC 1600

Standard equipment
Operation manual, clevis to connect the cylinder to the tiller.
Description

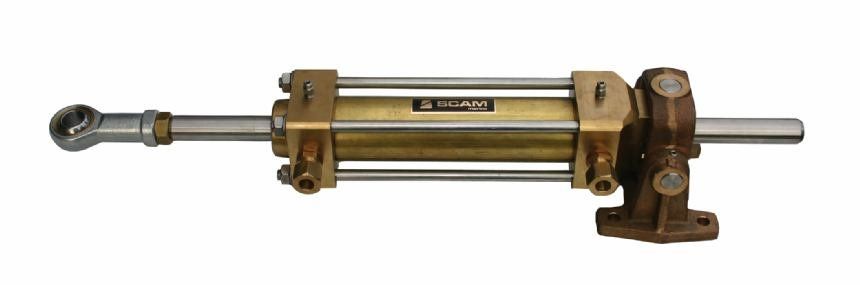

SCAM hydraulic cylinder HC 1600 is usually installed in combination with the hydraulic pump HP 07. Thanks to the cardan and ball joint on the cylinder rod, SCAM hydraulic cylinders are easily installed. Due to the careful choice of material (inox - bronze) they don’t require any special maintenance.
We recommend SCAM HIDRAULIC FLUID or the following hydraulic oils:
  • - INA Hidraol 15
  • - Castrol HYSPIN AWH-15
  • - Shell Tellus T 15
  • - Mobil HSC 522
  • - BP Bartan HV 15
  • - Valvoline Ultramax HD15
and other hydraulic oils with same specifications.
 Info
SCAM marine gives a 24 month warranty on steering gears starting with delivery date. SCAM marine hydraulic cylinders have type approval certificate of the Croatian Register of Shipping and CE mark.
