HP 05 E

HP 05 E

Technical specifications
Engine type HP 05 E
Type of product Hydraulic steering pump
Number of pistons 5
Capacity 23 cm3/rev.
Nominal maximum pressure 65 bar/6374 kPa

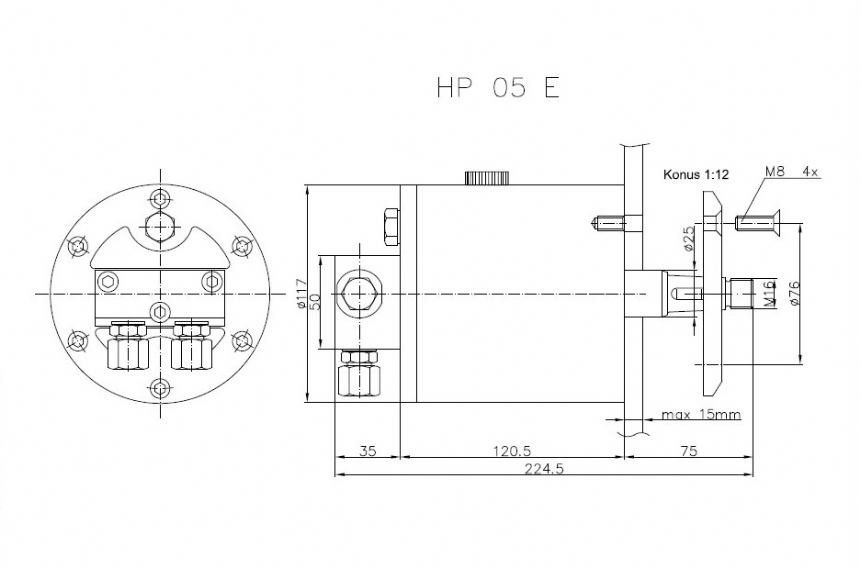

Blueprints and diagrams HP 05 E

Standard equipment
Operation manual, taper key and decorative nut to fit the steering wheel.
Description

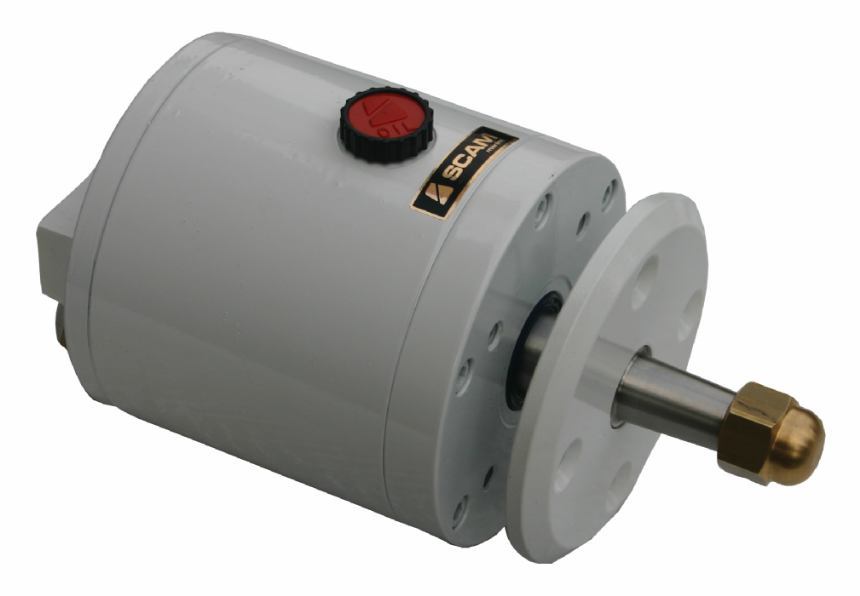

The HP 05 E pump is an axial piston pump with 5 pistons. The rotor of the pump is placed in the ball bearing and pistons in the axial bearing. All parts are positioned in the aluminium housing which also serves as the hydraulic oil reservoir.
We recommend SCAM HIDRAULIC FLUID or any the following hydraulic oils:
  • - INA Hidraol 15
  • - Castrol HYSPIN AWH-15
  • - Shell Tellus T 15
  • - Mobil HSC 522
  • - BP Bartan HV 15
  • - Valvoline Ultramax HD15
and any other hydraulic oil having the same specifications.
 Info
SCAM marine gives a 24 month warranty on steering gears starting from the date of delivery.
SCAM Marine hydraulic pumps have a certified type approval of the Croatian Register of Shipping and have a CE certificate.
