HP09

HP 09

Technical specifications
Engine type HP 09
Type of product Hydraulic steering pump
Number of pistons 9
Capacity 80 cm3/rev.
Nominal maximum pressure 60 bar/5884 kPa

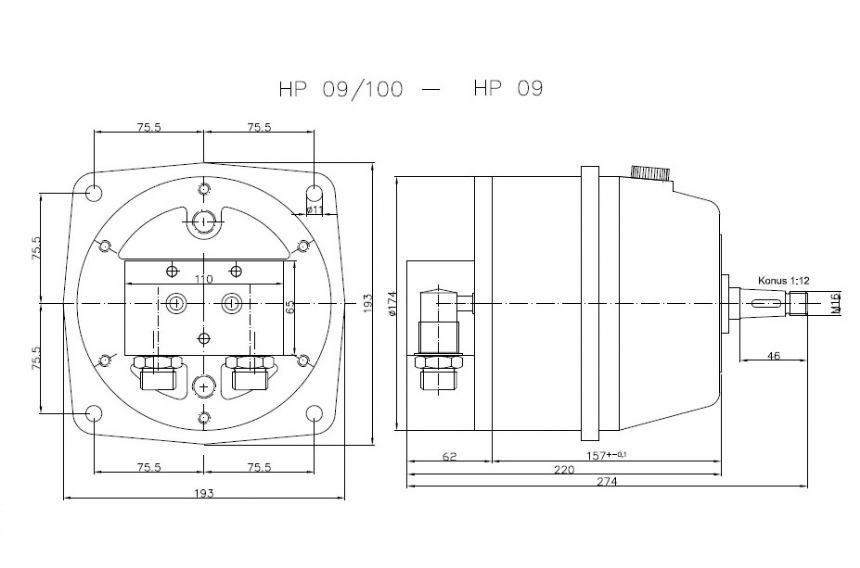

Blueprints and diagrams HP 09

Standard equipment
Dual non-return valve No 12, taper key and decorative nut to fit the steering wheel, operation manual.
Description

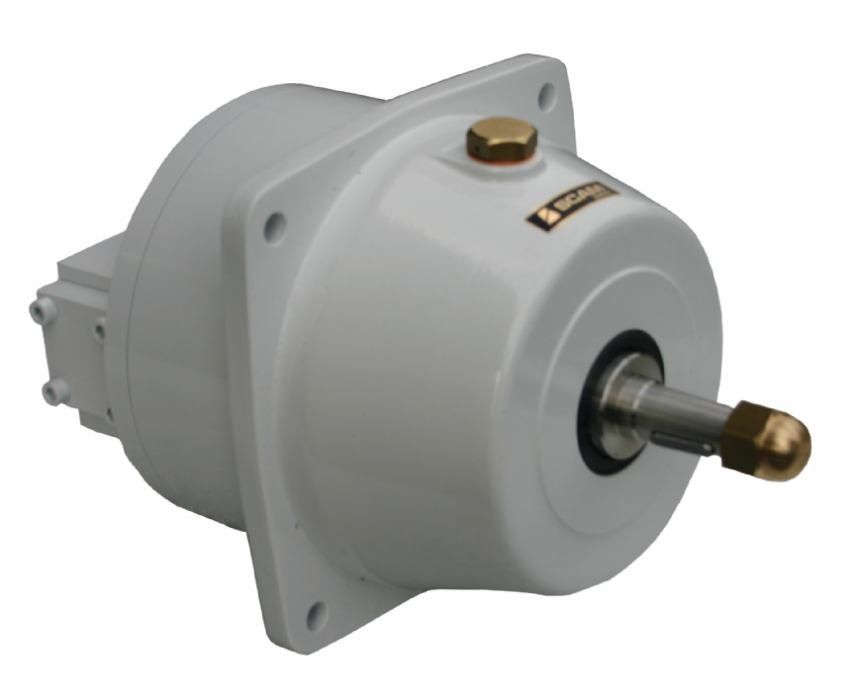

The HP 09 pump is an axial piston pump with 9 pistons which satisfy greater oil supply for the corresponding cylinders. All parts are positioned in the aluminium housing which also serves as the hydraulic oil reservoir.
We recommend SCAM HIDRAULIC FLUID or any the following hydraulic oils:
  • - INA Hidraol 15
  • - Castrol HYSPIN AWH-15
  • - Shell Tellus T 15
  • - Mobil HSC 522
  • - BP Bartan HV 15
  • - Valvoline Ultramax HD15
and any other hydraulic oil having the same specifications.
 Info
SCAM marine gives a 24 month warranty on steering gears starting from the date of delivery.
SCAM Marine hydraulic pumps have a certified type approval of the Croatian Register of Shipping and have a CE certificate.
