Elastic coupling RBD
| Technical specifications | |
|---|---|
| Generating set type | |
| Type of product | Elastic coupling RBD |
Blueprints and diagrams
Description
Torque transmission from the flywheel of the diesel engine to the inlet shaft of the gearbox is achieved through insertion of the elastic torsional coupling between the engine and the gearbox.
The coupling’s purpose is to reduce (dampen) torsional vibrations of diesel engines and to reduce torque oscillations. Couplings can also compensate for the geometrical incorrectness of the engine and gearbox joining elements.
The coupling consists of the body – plate (which is fixed onto flywheel) and rotor whith inside hole. Torque is transmitted from the body to the rotor through few inserted rubber elements which allow a certain torsional angle between body and rotor.
Couplings with rubber elements are used for diesel engines of lower and middle power.
Areas of application:
Main propulsion drives:
- between diesel engine of lower power and rigidly mounted gearbox
Auxiliary drives of lower power with high idling.
Info
We also offer all other types of couplings of the renowned manufacturer RBD.

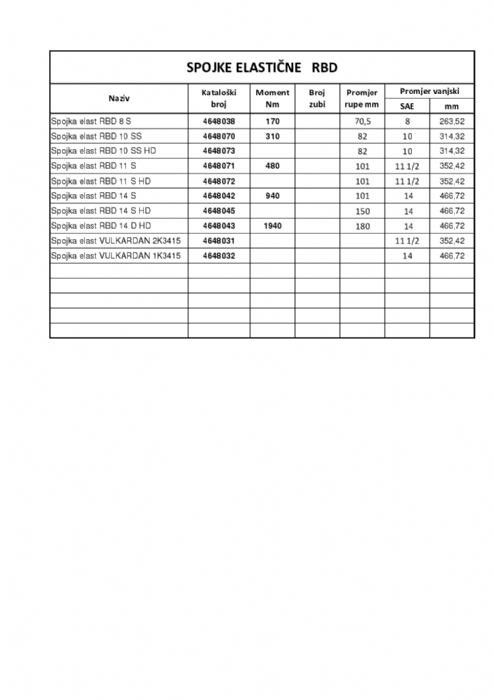

Download table of coupling & table of flywheel standard here
Couplings RBD.pdf Flywheel standards.pdf Δείτε σχετικές προσφορές ή επικοινωνήστε για ειδικές παραγγελίες
