GENERAL SPECIFICATION | ||
---|---|---|
Engine model | D905-E2B (3600 rpm) | |
Emission regulation | EPA/CARB Tier 2 level | |
Type | Vertical, water cooled 4-cycle diesel engine | |
Cylinders | 3 | |
Bore and stroke | mm (in) | 72.0 x 73.6 (2.83 x 2.90) |
Displacement | L (cu.in) | 0.898 (54.80) |
Aspiration | Naturally aspirated | |
Aftertreatment | - | |

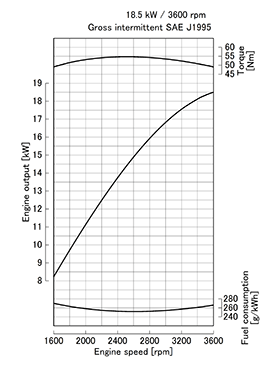

Rated output / speed*1 | kW (HP) / rpm | 18.5 (24.8) / 3600 |
Maximum torque / speed*1 | Nm (lb-ft) / rpm | 54.7 (40.3) / 2600 |
Combustion system | Indirect injection | |
Fuel system | In-line pump | |

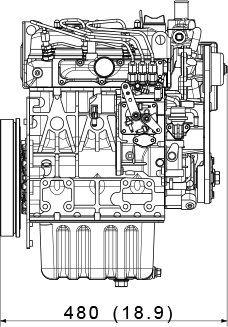

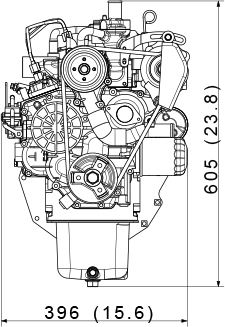

Length x Width x Height*2 | ||
(without aftertreatment unit) | mm (in) | 480 x 396 x 605 (18.9 x 15.6 x 23.8) |
Length x Width x Height*3 | ||
(with aftertreatment unit) | mm (in) | - |
Dry weight | kg (lb) | 93 (205) |
