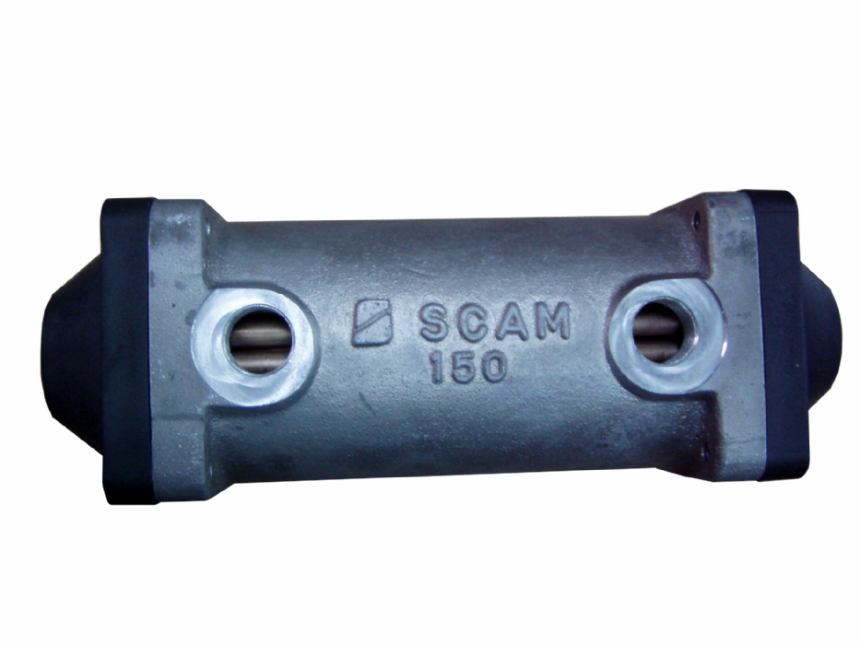

IT SCAM 150/55
| Technical specifications | |
|---|---|
| Engine type | IT SCAM 150/55 |
| Type of product | Heat exchanger |
| Length of the center | 150 mm |
| Diameter of the center | 55 mm |
| Connectors | oil...M16x1,5 or 5/16¨, sea water...3/4¨ or 1¨ |
Description
The shell of the heat exchanger is made of cast aluminium; covers are made of plastics, whereas tubing is bronze with copper-nickel tubes of 7 mm in diameter. Cooling area is 0.10 m2.
Info
Heat exchangers are used in double engine cooling systems for the cooling of cooling media as well as engine oil. They are also used for the cooling of gearbox oil.
