PSC-Cu
General Marine Parts
PSC-CuPSC-Cu
| Technical specifications | |
|---|---|
| Engine type | PSC-Cu |
| Type of product | Fitting for flexible and Cu pipe |
PSC-CuPSC-Cu
Standard equipment
Fittings dimensions:
No10 (flexibile hose 5/16“ - Cu 10 mm)
No12 (flexibile hose 3/8“ - Cu 10 mm)
Description
Fittings are used to connect hydraulic hoses with cylinders, pumps, valves etc.
They are made from brass, corrosion resistant material.

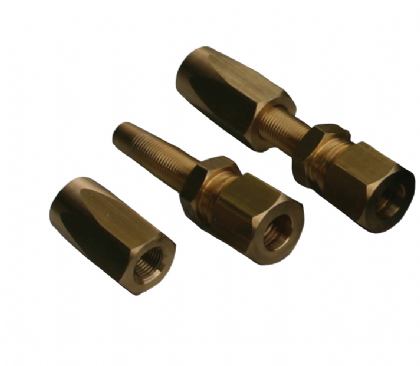

Fittings for flexible and Cu pipes are designed to enable the flexible hose to be connected to metal (copper) pipe. They consist of outer nut with inner left thread and inner tube with outer thread at one end and thread and cone, cutting ring and nut at the other end. Outer nut is screwed on the flexible hose (left thread). Then inner tube is inserted into the hose (right thread) and through alternate twisting tightened onto hose. Copper pipe is connected in the following way; after it is inserted, the nut is twisted and tightened (seal is obtained through cutting ring)
Info
Fittings are made:
No10 for HP05
and HP05OB
in combination with HC400, HC550, HC700
and HC850
No12 for HP07
in combination with HC1050, HC1600
and HC2100
